Superior Ink Absorption & Color Fidelity
High-capacity absorption supports high-resolution printing, minimal dot gain, sharp lines, and 100% color restoration for vibrant, saturated patterns.

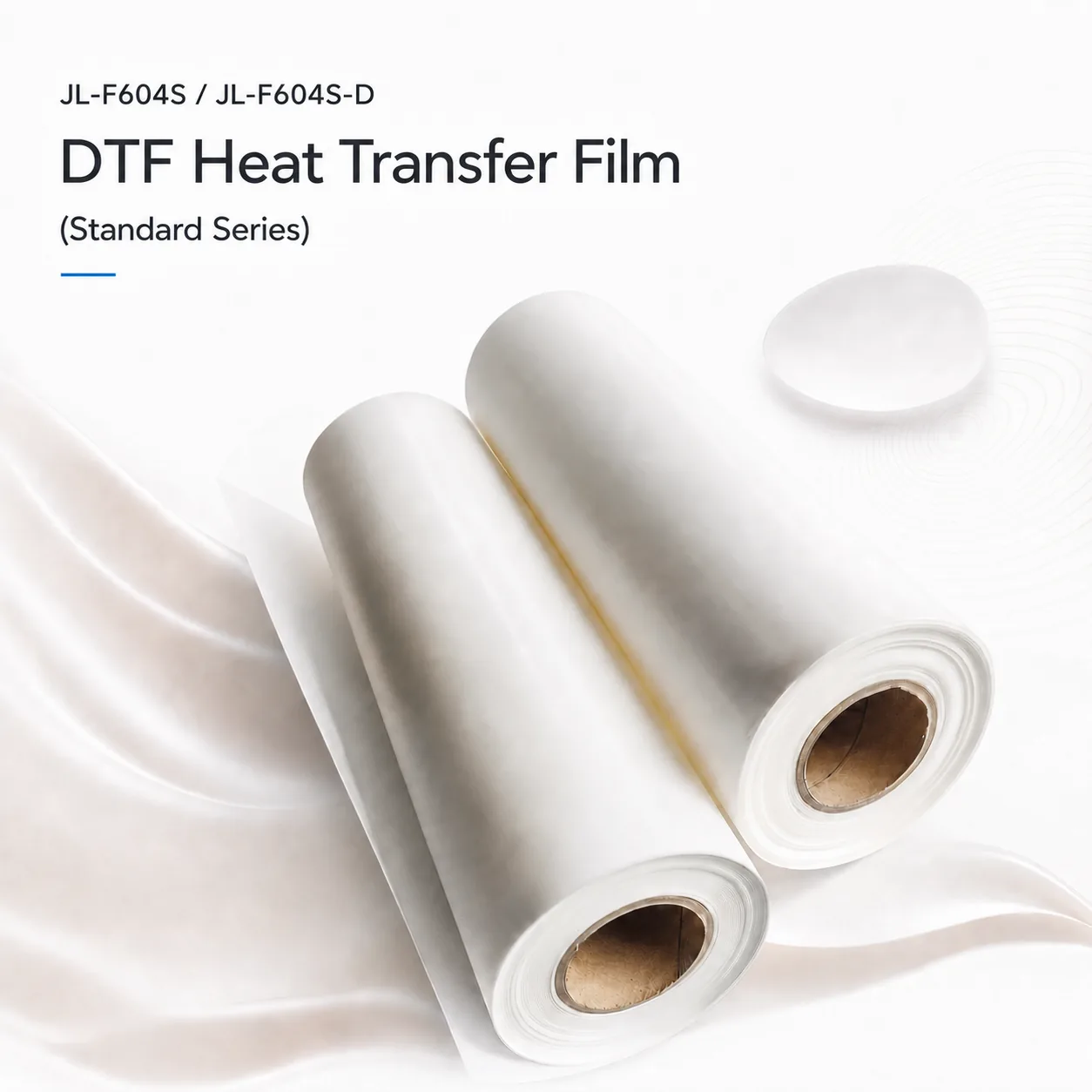

DTF Heat Transfer Film (Standard Series)
DTF Heat Transfer Film (Standard Series) – JL-F604S / JL-F604S-D
PRODUCT CODE: JL-F604S / JL-F604S-D
DTF heat transfer film with a multi-layer precision ink-absorbing release coating, compatible with DTF pigment ink and medium/fine TPU hot melt powder.
- Model
- JL-F604S / JL-F604S-D
- PET Original Thickness
- 75 um / 0.075 mm
- Transfer Temp
- 160-165 C
- Transfer Time
- 8-15 Seconds
01 / Product Overview
Product Overview
Our DTF Heat Transfer Film features industry-leading nano-microporous coating technology, specifically engineered for the modern no-cut, no-weed digital printing process. Combining physical release and chemical absorption mechanisms, it handles high ink loads without bleeding or pooling while ensuring strong adhesion to hot melt powder. With a smooth, clean finish, it is suitable for cotton, polyester, blends, leather, and more - making it the ideal consumable for both personalized customization and mass production.
Advanced Easy-Peel Technology
Stable release force and anti-static treatment support smooth feeding and peeling with zero background residue on the fabric.
Premium Texture & Hand Feel
Transferred patterns have elasticity and stretch recovery and are described as breathable and durable without the heavy plastic feel of traditional vinyl.
02 / Technical Overview
Product data at a glance
Use these values as a starting point and verify final settings on the target printer, powder, fabric and heat press.
- Model
- JL-F604S / JL-F604S-D
- Type
- Double-sided Matte / Single-sided Matte (Cold Peel, Hot Peel and Instant Peel)
- PET Original Thickness
- 75 um / 0.075 mm
- Coating
- Multi-layer Precision Ink-Absorbing Release Coating
- Compatible Ink
- DTF Pigment Ink
- Compatible Powder
- TPU Hot Melt Powder (Medium/Fine)
- Number of Coats
- Single-sided Matte: Four-layer coating; Double-sided Matte: Five-layer coating
- Transfer Temp
- 160-165 C (320-329 F)
- Transfer Time
- 8-15 Seconds
- Transfer Pressure
- More than 3 kg
- Available Sheet Sizes
- A2 / A3+ / A3 / A4 / A5
- Standard Roll Sizes
- 30 / 60 / 90 / 120 / 180 cm
- Non-standard Roll Sizes
- 21 / 33 / 45 / 50 / 75 cm; other custom sizes
03 / Process Window
Recommended production sequence
Record the final printer, curing and pressing parameters after testing the complete material combination.
- 01
Printing Environment
Recommended room temperature is 20-25 C (68-77 F) with 45%-65% relative humidity.
- 02
Powder Curing
Set the oven/dryer temperature to 120-130 C and bake for 2-3 minutes until the powder melts completely into a uniform, glossy surface.
- 03
Heat Pressing
Set the heat press temperature to 160 C. Apply medium-to-high pressure (4-5 kg) for 10-15 seconds.
- 04
Peeling & Finishing
Cold peel: wait until completely cooled before peeling diagonally at a steady speed. Hot peel: peel immediately after pressing. A second press for 5-8 seconds using a Teflon sheet is highly recommended.
- 05
Storage
Store unused film in a cool, dry place away from direct sunlight. Reseal packaging immediately after use to prevent moisture absorption.
04 / Applications
Applications
Widely used for personalized T-shirts, hoodies, sportswear, team uniforms, canvas bags, caps, footwear, denim, luggage, and garment labels/logos.
06 / Supply Information
Available Sizes
Available Sizes
Available sheet sizes: A2, A3+, A3, A4 and A5. Standard roll sizes: 30, 60, 90, 120 and 180 cm. Non-standard roll sizes: 21, 33, 45, 50 and 75 cm, or other custom sizes.
OEM / Customization
Non-standard sizes and custom sizes incur additional charges.
